Steel Wire Rope GOST 7669-80, EN 12385-4, DIN 3064 – 6x36WS-IWRC Galvanized

The steel wire rope according to GOST 7669-80 (EN 12385-4, DIN 3064) with 6x36WS-IWRC construction combines high tensile strength and flexibility. Its rigid steel core ensures durability, wear resistance and reliability under heavy loads, making it ideal for demanding applications.

Construction and Features

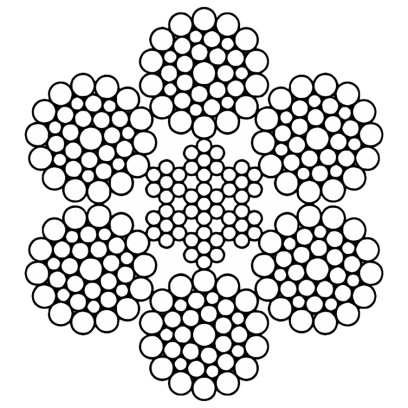

Construction: 6х36 (1+7+7/7+14) + 7х7 (1+6), (6x36WS-IWRC)
Coating: galvanized (C) for corrosion protection
Core: steel, rigid
Standards: GOST 7669-80, EN 12385-4, DIN 3064

Applications of 6x36WS-IWRC Wire Rope

guy ropes and structural tensioning;
masts and towers;
lifting equipment: cranes, excavators, hoists.

Advantages

high tensile strength;
wear resistance;
flexibility for easier handling;
long service life.

Rope diameter, mm	Approximate weight of the lubricated rope, kg/m	Marking group, N/mm²
		1570	1770	1960	1570	1770	1960
		Breaking force, kN, not less than
		total of all wires in rope			rope as a whole
10	0.331	72.2	81.4	90.2	55.9	63	69.8
10.5	0.409	79.6	89.8	99.4	61.6	69.5	76.9
11	0.451	87.4	98.5	109	67.6	76.2	84.4
12	0.495	104	117	130	80.5	90.7	100
12.5	0.589	113	127	141	87.3	98.5	109
13	0.639	122	138	152	94.5	106	118
13.5	0.691	132	148	164	102	115	127
14	0.745	142	160	177	110	124	137
14.5	0.802	152	171	190	118	132	147
15	0.86	162	183	203	126	142	157
15.5	0.92	174	196	217	134	151	168
16	0.983	185	208	231	143	161	179
16.5	1.05	197	222	245	152	172	190
17	1.11	209	235	261	162	182	202
17.5	1.18	221	249	276	171	193	214
18	1.25	234	264	292	181	204	226
18.5	1.33	247	279	309	191	216	239
19	1.4	261	294	325	202	227	252
19.5	1.48	275	310	343	213	240	265
20	1.56	289	326	361	224	252	279
21	1.64	318	359	398	246	278	308
22	1.8	350	394	436	271	305	338
23	1.98	382	431	477	296	333	369
24	2.16	416	469	519	322	363	402
25	2.36	451	509	564	349	394	436
26	2.56	488	550	609	378	426	472
26.5	2.76	507	572	633	393	443	490
27	2.87	526	594	657	407	459	509
28	2.98	566	638	707	438	494	547
29	3.21	607	685	758	470	530	587
30	3.44	650	733	811	503	567	628
31	3.68	694	782	866	537	606	671
32	3.93	740	834	923	572	645	715
32.5	4.19	763	860	952	590	666	737
33	4.32	786	887	982	609	686	760
33.5	4.45	810	914	1012	627	707	783
34	4.59	835	941	1042	646	728	807
35	4.73	885	997	1104	685	772	855
35.5	5.01	910	1026	1136	704	794	879
36	5.15	936	1055	1168	724	817	904
36.5	5.3	962	1085	1201	745	839	930
37	5.45	989	1115	1234	765	863	955
38	5.6	1043	1176	1302	807	910	1008
39	5.91	1098	1238	1371	850	958	1061
39.5	6.22	1127	1270	1407	872	983	1089
40	6.38	1156	1303	1443	894	1008	1116
41	6.54	1214	1369	1516	940	1059	1173
42	6.88	1274	1436	1590	986	1112	1231
43	7.21	1335	1505	1667	1033	1165	1290
44	7.56	1398	1576	1745	1082	1220	1351
45	7.92	1462	1649	—	1132	1276	—
45.5	8.28	1495	1686	—	1157	1305	—
46	8.47	1528	1723	—	1183	1333	—
47	8.65	1595	1799	—	1235	1392	—
48	9.03	1664	1876	—	1288	1452	—
49	9.42	1734	1955	—	1342	1513	—
50	9.82	1806	2036	—	1397	1575	—
51	10.2	1878	2118	—	1454	1639	—
52	10.6	1953	2202	—	1511	1704	—
53	11.1	2029	2287	—	1570	1770	—
54	11.5	2106	2374		1630	1837
56	11.9	2265	2553	—	1753	1976	—
57	12.8	2346	2645	—	1816	2047	—
58	13.3	2429	2739	—	1880	2120	—
