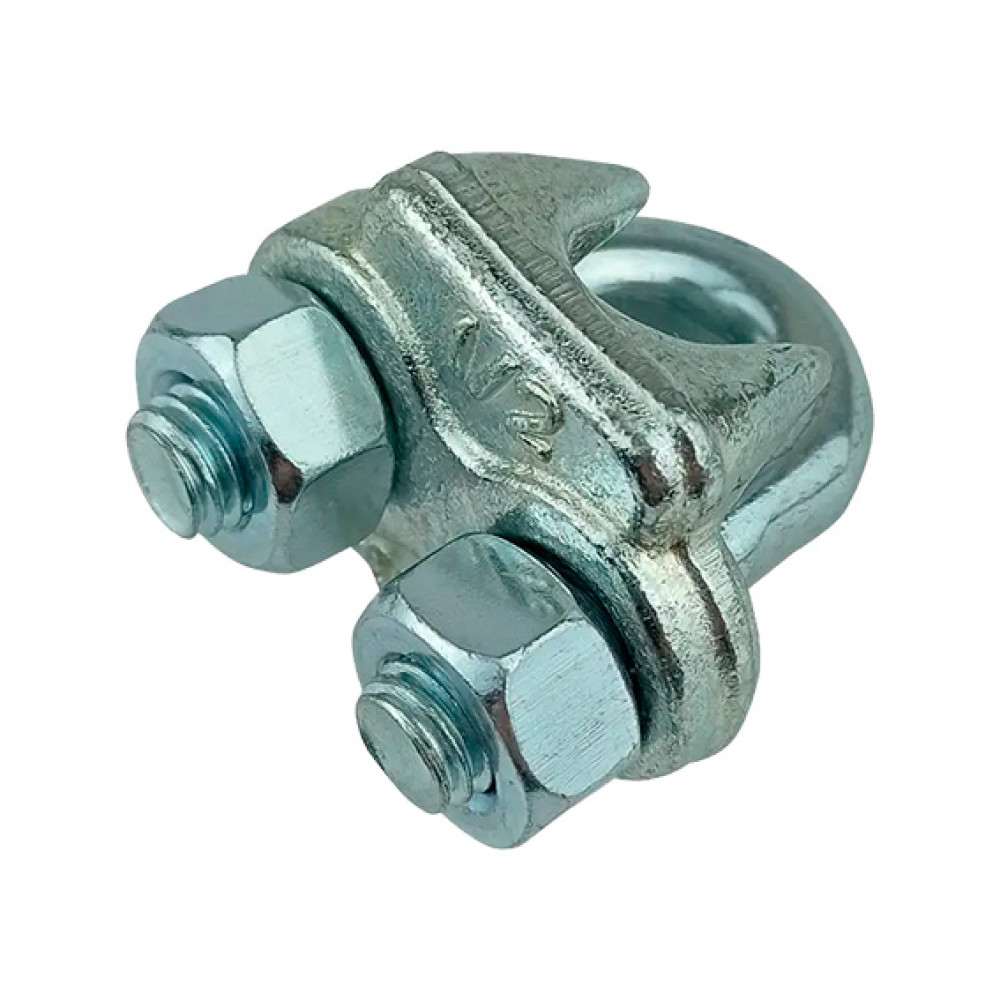

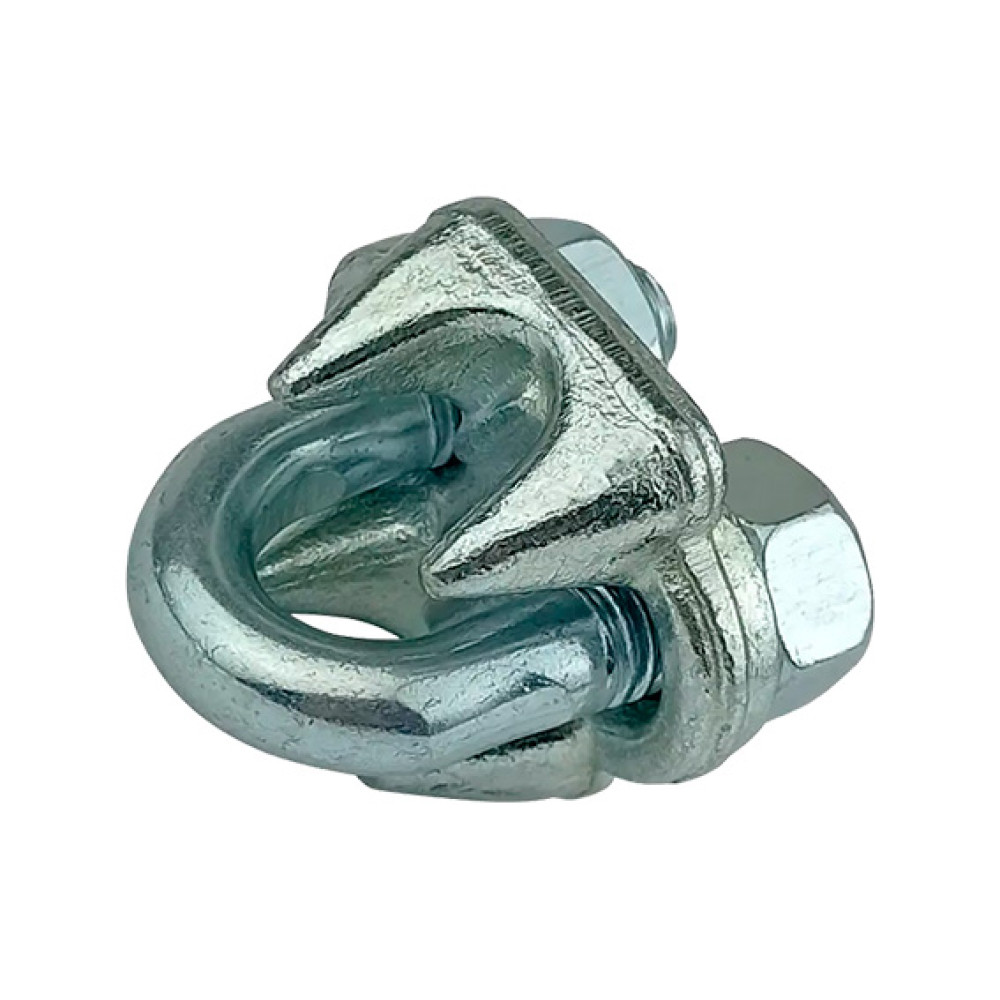

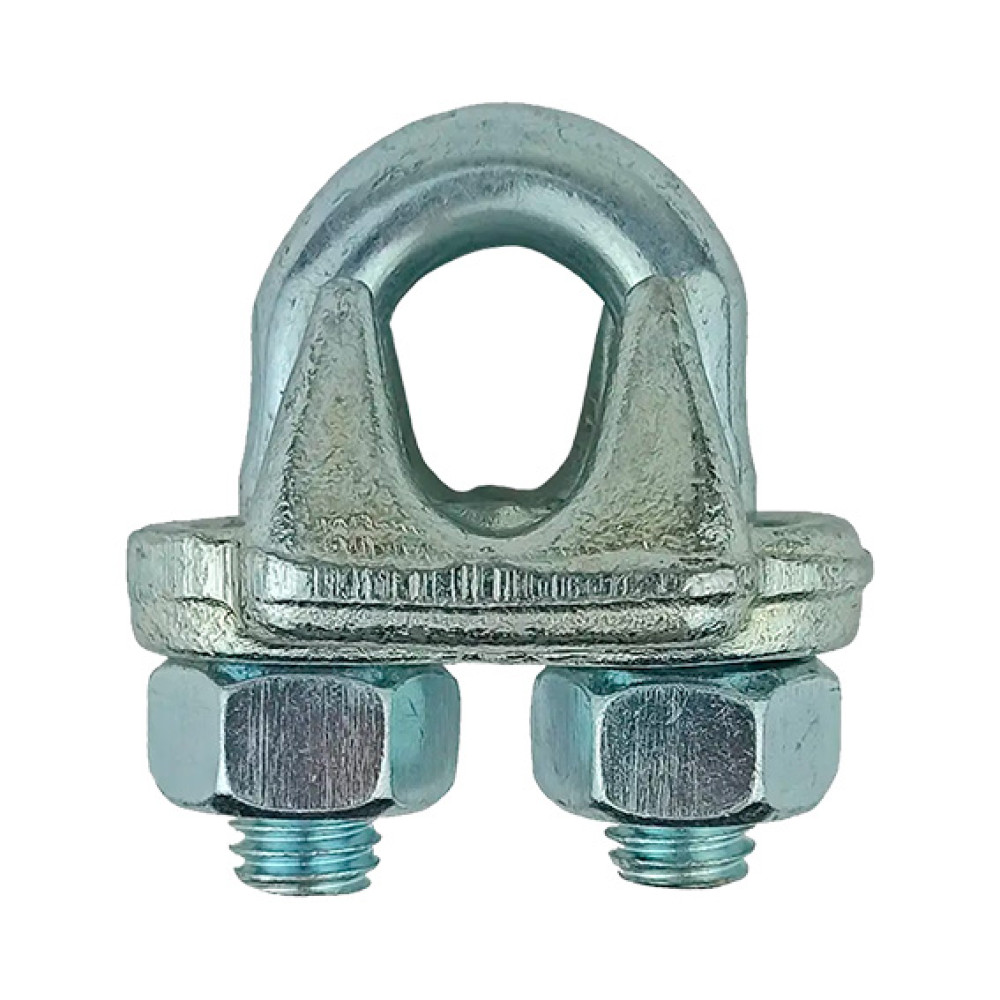

HDG G450 Wire Rope Clip is a specialized fastening device designed for working with steel ropes, suitable for lifting operations. It is made of high-quality steel with a galvanized coating, ensuring durability and resistance to corrosion. Compliance with the DSTU EN 13411-5:2018 standard is confirmed by a quality certificate.
The HDG G450 clip is used for securing ropes, extending rope segments, and forming loops at the ends of cables. It is a reliable and easy-to-use solution for construction, household, and installation tasks.
Key Features
- Material: high-strength carbon steel.
- Coating: galvanized for corrosion resistance.
- Standard: DSTU EN 13411-5:2018, HDG G450.
- Quality certificate and warranty: 6 months.
- Cable diameters: from 4 mm to 50 mm.
Benefits of the HDG G450 Clip
- Simple and convenient to use. To secure a rope, simply loosen the nuts, place the cable into the designated slot, reattach the U-bolt, and tighten the nuts evenly.
- Wide range of sizes suitable for various cable diameters.
- Resistance to external factors due to galvanized coating.
- A neat appearance allows the product to be used in visible structures.
Applications
HDG G450 wire rope clips are suitable for lifting operations, securing structures, extending cables, and creating loops. For less demanding tasks, standard DIN 741 clips may suffice.

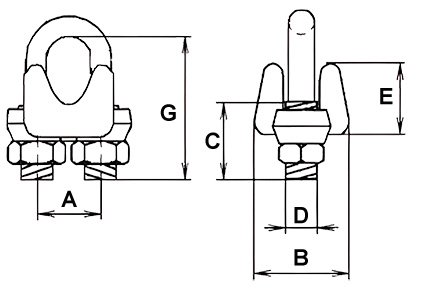

Technical Specifications and Sizes of HDG G450 Clips
|
Designation |
Nominal clamp size |
Nominal rope size |
A |
B |
C |
E |
G |
Weight, 1 pc |
|
inches |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
|
|
4mm |
1/8 |
3-4 |
12,0 |
20,5 |
11,0 |
9,4 |
18,0 |
0,023 |
|
5mm |
3/16 |
5 |
15,0 |
24,0 |
14,0 |
12,7 |
24,0 |
0,040 |
|
6mm |
1/4 |
6-7 |
19,0 |
30,0 |
12,5 |
16,8 |
26,0 |
0,080 |
|
8mm |
5/16 |
8 |
22,5 |
33,5 |
19,0 |
18,5 |
35,0 |
0,140 |
|
10mm |
3/8 |
9-10 |
25,5 |
41,5 |
19,0 |
23,0 |
38,0 |
0,190 |
|
13mm |
1/2 |
12-13 |
30,0 |
48,5 |
25,5 |
28,5 |
47,0 |
0,340 |
|
14mm |
9/16 |
14-15 |
33,5 |
52,5 |
32,0 |
34,0 |
60,0 |
0,450 |
|
16mm |
5/8 |
16 |
33,5 |
52,5 |
32,0 |
34,0 |
70,0 |
0,450 |
|
19mm |
3/4 |
18-20 |
38,0 |
57,0 |
36,5 |
35,5 |
79,0 |
0,680 |
|
22mm |
7/8 |
22 |
44,5 |
62,0 |
41,0 |
40,0 |
89,0 |
1,090 |
|
26mm |
1 |
24-26 |
48,0 |
66,5 |
46,0 |
45,0 |
98,0 |
1,130 |
|
30mm |
1 1/8 |
28-30 |
51,0 |
71,5 |
51,0 |
48,5 |
108,0 |
1,310 |
|
34mm |
1 1/4 |
32-34 |
59,0 |
79,5 |
56,0 |
55,0 |
- |
- |
|
40mm |
1 1/2 |
38-40 |
65,5 |
86,5 |
60,5 |
62,0 |
- |
- |
Assembly Instructions
- Form a loop at the end of the cable or bend it around a thimble.
- Install the first clip at the dead end of the cable, securing it close to the free end.
- Place the second clip near the thimble or base of the loop.
- If required, install additional clips, evenly spacing them between the first and second.
- Tighten the nuts using the recommended torque values and ensure secure fastening.
Torque Values and Number of Clips
| Nominal Clip Size | Nominal Rope Size (mm) | Minimum Number of Clips | Dead End Length (mm) | Torque (Nm) |
|---|---|---|---|---|
| 1/8 | 3-4 | 2 | 85 | 6.1 |
| 1/4 | 6-7 | 2 | 120 | 20.3 |
| 3/8 | 9-10 | 3 | 165 | 61.0 |
| 1/2 | 12-13 | 3 | 292 | 88.0 |
| 3/4 | 18-20 | 4 | 460 | 176.0 |
| 1 | 24-26 | 5 | 660 | 305.0 |
Note: If more clips are used than recommended in the table, the length of the dead end of the cable should be proportionally increased.
HDG G450 clips are a reliable and durable solution for your fastening needs. Choose quality for your projects!
